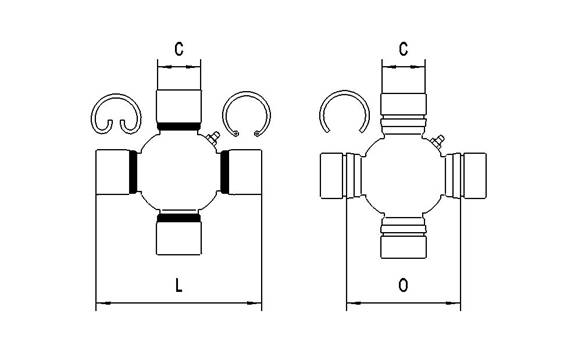

| H型 四圓型萬向節 | ||||||||
| 編號 | C (mm) | O (m) | L (mm) | SPICER | PRECISION | NEAPCO | GMB | 其它 |
| H1 | 20.02 | 34.7 | 5-1500X | 392 | 1-0028 | |||
| H2 | 22.52 | 34 | 5-1514X | 385 | 1-1404 | |||
| H3 | 23.82 | 61.2 | 5- 13400X | |||||
| H4 | 23.82 | 61.3 | 5-101X | 340 | 1-0300 | GU400 | ||
| H5 | 23.82 | 61.3 | 5-111X | 341 | 1-0300 | GU400 | ||
| H6 | 23.82 | 35 | 5-103X | 338 | 1-0170 | |||
| H7 | 23.82 | 34.85 | 5-170X | 338 | 1-0170 | SWD133 | ||
| H8 | 24.6 | 34.36 | 5-92X | 861 | 1-1475 | GGPL-6R | ||
| H9 | 25 | 40.5 | 5-1516X | 399 | 1-1516 | GUM88 | ||
| H10 | 25.02 | 39.8 | 5-1503X | 1-1557 | ||||
| H11 | 25.02 | 40 | 5-1501X | 391 | 1-0027 | GUN27 | ||
| H12 | 25.4 | 39.5 | 5-100X | 514 | 1-0105 | |||
| H13 | 25.4 | 39.5 | 5-105X | 514G | 1-0105 | |||
| H14 | 25.4 | 55 | 5-2011X | 407 | 1-3400 | GU6200 | ||
| H15 | 26 | 41.40 | 5-1502X | 394 | 1-0013 | GUT13 | ||
| H16 | 26.03 | 53.64 | 5-1508X | 390 | 1-0012 | GUT12 | ||
| H17 | 27 | 38.38 | 5-456X | 2-0456 | ||||
| H18 | 27 | 57.4 | 5-1200X | 429 | 1-5900 | |||
| H19 | 27 | 81.75 | 5-121X | 369 | ||||
| H20 | 27 | 81.75 | 5-251X | 369 | 1-5900 | |||
| H21 | 27 | 52.5 | 5-260X | 365 | 1-0174 | |||
| H22 | 27 | 81.75 | 5-113X | 369 | ||||
| H23 | 27 | 81.75 | 5-153X | 369 | 1-0153 | GU1000 | ||
| H24 | 27 | 81.75 | 5-200X | 369 | 1-0200 | |||
| H25 | 27 | 67.6 | 5-1203X | 433 | 2-1203 | |||
| H26 | 27 | 92/81.7 | 5-134X | 353 | 1-0134 | |||
| H27 | 27 | 52.5 | 5-74X | 356 | 1-0174 | |||
| H28 | 27 | 56.8 | 5-350X | 366 | 1-0350 | |||
| H29 | 27 | 67.6 | 5-273X | 433 | ||||
| H30 | 27 | 61.95 | 5-310X | 1-0458 | ||||
| H31 | 27 | 61.95 | 5-443X | 437G | 1-0443 | |||
| H32 | 27 | 74.6 | 5-4X | 344 | 1-0005 | GU1100 | ||
| H33 | 27 | 92 | 5-213X | 354 | 2-4800 | |||
| H34 | 27.4 | 49.42 | 5-1307X | |||||
| H35 | 27.4 | 40.8 | 5-1306X | 315G | 1-6301 | |||
| H36 | 28 | 52.9 | 5-1505X | 393 | 1-0029 | GUN29 | ||
| H37 | 28.52 | 77.7 | 5-1509X | 396 | 1-0014 | GUT14 | ||
| H38 | 28.6 | 60.2 | 5-3011X | 492 | 2-3111 | |||
| H39 | 28.6 | 63.96 | 5-1309X | 316 | 2-1175 | |||
| H40 | 28.6 | 60.2 | 5-3147X | 534G | 2-3011 | GU6370 | ||
| H41 | 28.6 | 49 | 5-2532X | 513 | 1-5800 | |||
| H42 | 29 | 49 | 5-1510X | 387 | 1-1612 | GUT17 | ||
| H43 | 30.188 | 92.075 | 5-178X | 331 | 2-0053 | GU2200 | ||
| H44 | 30.188 | 106.35 | 5-10X | 330 | GU2040 | |||
| H45 | 30.188 | 106.35 | 5-160X | 330 | 2-0054 | GU2040 | SWE170 | |
| H46 | 30.188 | 40.28 | 5-1206X | G5-1206X | 2-6400 | |||
| H47 | 30.2 | 52.5 | 5-297X | 371 | 1-0297 | |||
| H48 | 31.25 | 46 | 5-1300X | 2-1400 | GU2400 | |||
| H49 | 31.3 | 71.5 | 5-1301X | 304 | 3-0056 | |||
| H50 | 32 | 61 | 5-1511X | 389 | 2-0020 | GUT20 | ||
| H51 | 33.3 | 67.48 | 5-431X | 888 | 3-0044 | GGP-44R | ||
| H52 | 34.93 | 40.2 | 5-332X | 3-0332 | ||||
| H53 | 34.93 | 106.31 | 5-188X | 351 | 3-0188 | GU2300 | SWD147 | |
| H54 | 34.93 | 106.31 | 5-263X | 351 | 3-0188 | |||
| H55 | 34.93 | 126.22 | 5-155X | 358 | 3-0155 | |||
| H56 | 34.93 | 126.22 | 5-275X | 358 | 3-0155 | |||
| H57 | 38 | 57.2 | 5-1506X | 463 | GU7300 | |||
| H58 | 38 | 57.2 | 5-12213X | |||||
| H59 | 39.68 | 115.42 | 5-15X | 370 | GU3400 | |||
| H60 | 41.24 | 142 | 5-165X | 359 | 4-0165 | |||
| H61 | 44.1 | 149 | 5-12276X | |||||
| H62 | 45 | 120.4 | 5-12100X | |||||
| H63 | 48.05 | 125.8 | 5-12219X | GU4020 | ||||
| H64 | 48.05 | 161 | 5-12062X | |||||
| H65 | 40 | 164 | 5-12278X | |||||
| H66 | 52 | 133 | 5-12924X | GU7540 | ||||
| H67 | 56.9 | 162.9 | 5-12072X | |||||
| H68 | 57 | 152 | 5-12932X | GU4030 | ||||
| H69 | 65.1 | 144.1 | 5-316X | |||||
| H70 | 25.39/27 | 38.6 | 62 | 5-248X | 361 | 1-0248 | ||
| H71 | 27.01/27 | 52.5 | 81.78 | 5-450X | 455 | |||
| H72 | 27.02/28.6 | 40.2 | 92 | 5-212X | 355 | 2-1569 | ||
| H73 | 27/27.4 | 50.8 | 81.78 | 5-353X | 319 | 2-3100 | ||
| H74 | 27/28.6 | 55.5 | 81.78 | 5-1201X | 430 | 1-4635 | ||
| H75 | 27/28.6 | 40.2 | 81.78 | 5-3022X | 372 | 3-3130 | ||
| H76 | 27/28.6 | 67.6 | 92 | 5-1204X | 434 | 2-4900 | ||
| H77 | 27/30.2 | 82/93.3 | 5-460X | 3-3140 | ||||
| H78 | 27/28.6 | 60.2 | 81.78 | 5-544X | 372 | |||
| H79 | 28.6/28.58 | 40 | 91 | 5-1312X | 375 | |||
| H80 | 22.02 | 54.15 | EG10 | |||||
| H81 | 23.82 | 61.45 | EG20 | |||||
| H82 | 24.6 | 38.6 | SWD114 | |||||
| H83 | 27.02 | 70.15 | EG30 | |||||
| H84 | 27.02 | 74.8 | EG40 | |||||
| H85 | 30.03 | 83.2 | SWE169 | |||||
| H86 | 30.22 | 80.15 | EG50 | |||||
| H87 | 30.22 | 92.2 | EG60 | |||||
| H88 | 30.22 | 106.65 | EG70 | |||||
| H89 | 34.92 | 106.5 | EG80 | |||||
| H90 | 34.92 | 126.2 | SWE113 | |||||
| H91 | 43 | 136 | (STEYR) | |||||
| H92 | 52 | 133 | SWA168 | |||||
| H93 | 68 | 89 | SWA177 | |||||
| H94 | 68 | 89 | SWA179 | |||||
